Trunnion Ball Valve Manufacturers in India - Maharashtra - Mumbai ID1604677

Speciality Valve is the leading Trunnion Ball Valve Manufacturers in India. It is a type of ball valve with a mechanical support structure that holds the ball in place. The valve is widely used in industries that require precise control and high-pressure handling, such as oil, gas, and chemical processing.

How It Works:

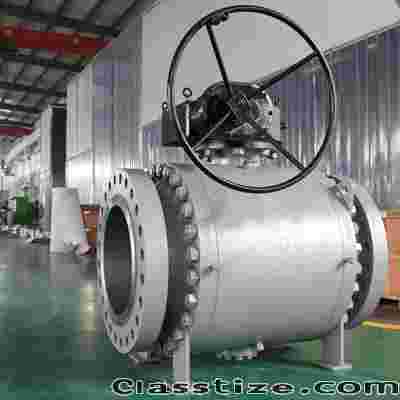

The Trunnion Ball Valve consists of a ball with a trunnion (fixed stem) support at the top and bottom. Unlike standard floating ball valves, where the ball is held only by the pressure from the medium, the trunnion design stabilizes the ball, preventing it from moving laterally. The valve operates by rotating the ball inside the valve body using an actuator.

Main Components:

Ball: The spherical element that controls the flow of fluid.

Trunnions: The top and bottom supports that fix the ball in place.

Valve Body: The casing that holds the internal components, including the ball.

Seats: Sealing elements around the ball to ensure a tight shutoff.

Actuator: A device (manual or automated) that rotates the ball.

Stem: The component connecting the actuator to the ball, enabling movement.

Speciality valve is a trusted Trunnion Ball Valve Manufacturers in India we offer a variety of valves for various industrial applications also provided custom design of valves

Benefits:

Enhanced Durability: Trunnion ball valves can handle high-pressure and high-flow applications due to their stable ball design.

Reduced Wear: The trunnion provides support that reduces wear on the ball and the valve seat, extending valve life.

Lower Torque: The ball’s fixed position results in lower operating torque compared to floating ball valves, making it easier to operate.

Reliable Sealing: The design ensures better sealing performance, minimizing leakage in critical applications.

Compact Design: Despite handling large pressures, trunnion ball valves can be compact and efficient in space-limited installations.

Overall, the Trunnion Ball Valve is ideal for applications requiring stability, high pressure, and long-term reliability.

Industries uses

1. Oil and Gas

2. Petrochemical and Chemical Processing

3. Power Generation

4. Water and Wastewater Treatment

5. Mining

Description

1.Body Material: Titanium TA1, TA2, TA10, TC4, GR2, GR3, GR5

2. Class: 150/PN16

3. Connection Type: Flanged

4. Size: 1″, 2″, 3″, 4″

5. Operation: handwheel operated, lever operated, pneumatic, and electric actuated.
