Thermoking units sb210230c600 - Iowa - Des Moines ID1602786

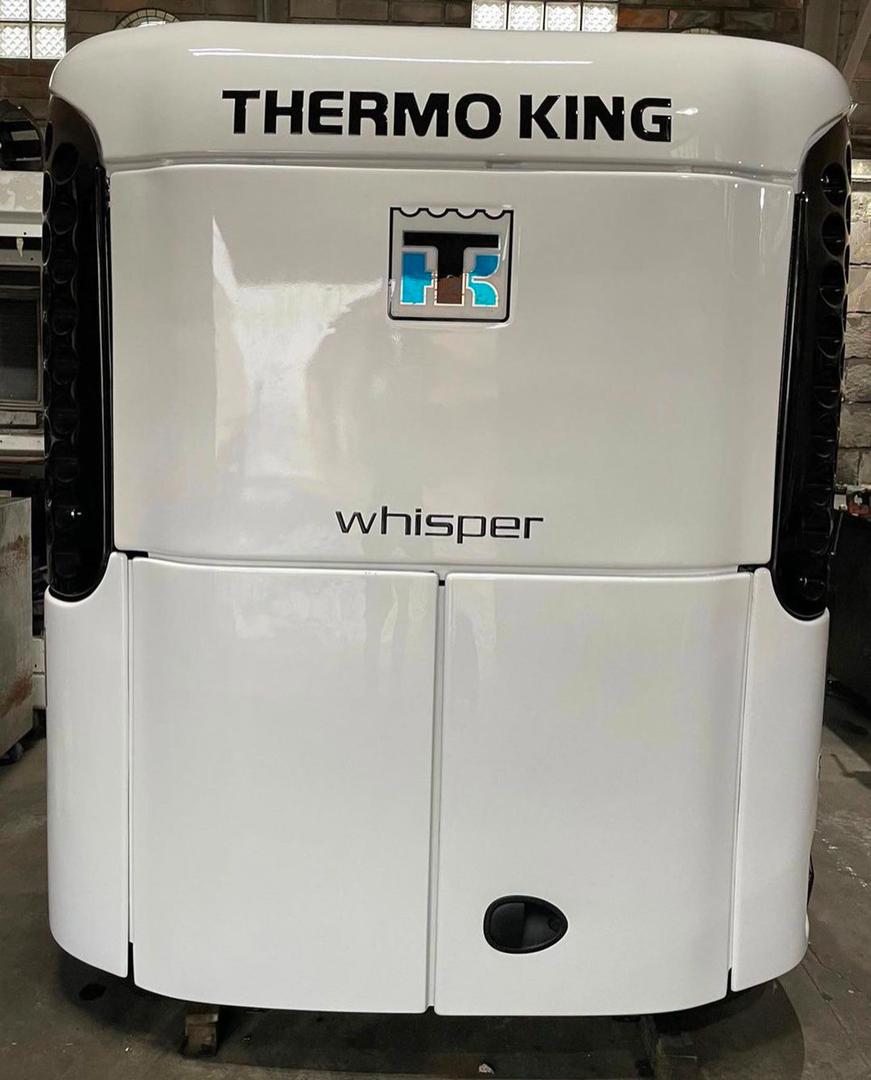

For sale is a Thermo King refrigeration unit, designed for superior temperature control in medium-duty refrigerated trucks or small trailers. This unit features a hybrid design with a diesel-powered engine for on-road operation and a 230-volt electric standby option for stationary use, making it versatile for both transport and warehouse applications. Ideal for perishable goods like food, pharmaceuticals, or flowers, it combines reliability, efficiency, and compliance with modern emissions standards.

Model Example

Let’s consider a Thermo King T-680R with Electric Standby as a representative unit:

• Condition: Available new or used (depending on listing).

• Year: Typically 2018–2025 for current market offerings.

Key Specifications

• Refrigeration Capacity:

• Cooling: Up to 19,000 BTU/hr at 35°F (2°C) setpoint in 100°F (38°C) ambient conditions.

• Heating: 10,000 BTU/hr for defrost and temperature maintenance.

• Temperature Range: -20°F to 86°F (-29°C to 30°C), adjustable via digital controller.

• Power Options:

• Diesel Engine: Thermo King TK486V, 4-cylinder, 25 HP, Tier 4 Final compliant, low noise (Whisper option available).

• Electric Standby: 230V, single-phase, 60 Hz (or 230/1/50 for international use), drawing 10–15 kW, with a standard 32A CEE plug.

• Refrigerant: R452A (low GWP, CARB-compliant), 12–14 lbs charge.

• Weight: Approximately 900–1,000 lbs (408–454 kg), depending on configuration.

Physical Design

• Dimensions:

• Width: 75 inches (1.9 m)

• Height: 25 inches (0.64 m)

• Depth: 20 inches (0.51 m)

• Construction: Durable composite panels with stainless steel accents, corrosion-resistant aluminum frame, and a sleek, aerodynamic grille for condenser protection.

• Mounting: Front-wall mount, compatible with trucks (e.g., Isuzu NPR) or trailers up to 20ft.

Features

• Smart Reefer Controller (SR-4): Touchscreen interface with real-time diagnostics, temperature logging, and USB port for data download. Supports remote monitoring via Thermo King’s TracKing telematics (24-month subscription often included).

• Electric Standby: Plugs into a 230V outlet, reducing fuel costs and emissions during stationary operation (e.g., at a loading dock). Ideal for urban areas with noise or idling restrictions.

• Airflow: Multi-fan evaporator (600–800 CFM) ensures even cooling, with a heavy-duty ducted floor for optimal circulation.

• Noise Reduction: Whisper technology keeps decibels below 60 dB, perfect for residential deliveries.

• Maintenance: ServiceWatch diagnostics, long-life composite doors with auto-latch, and easy-access panels for quick repairs.

Condition and Usage

• Used Units: Typically 5,000–15,000 engine hours, fully serviced with new filters, belts, and a reconditioned compressor. CARB-compliant with evergreen status (no DPF required).

• New Units: Zero hours, factory warranty (1–2 years), and optional extended coverage.

Applications

• Food Transport: Keeps frozen goods at -20°F or chilled produce at 35°F, with precision for HACCP compliance.

• Pharma: Maintains 2–8°C for vaccines, monitored via data logger.

• Floral: Controls humidity (optional feature) to preserve blooms at 34°F.

Seller Details (Hypothetical Example)

• Source: Available online viaShop — thermokingshop.com Certified Pre-Owned Program, or dealers like Thermo King Central California.

• Location: Example — Fresno, CA, or Omaha, NE.

• Extras: May include installation, delivery, or a 6-month engine warranty.

Why Buy This Unit?

• Versatility: Diesel for the road, 230V standby for the dock — cuts operational costs.

• Reliability: Thermo King’s 80+ year legacy ensures uptime and parts availability.

• Compliance: Meets EPA Tier 4 and CARB standards, future-proof for regulations as of April 6, 2025.
